EPS shape molding machine(EPS shape moulding machine) is used to make different kinds of eps products by changing the moulds.
After the EPS material is foamed, dried and matured, the EPS beads are automatically fed into the mold by the machine, and then heated and sintered by steam. After shaping and cooling, the foamed products are automatically pushed out of the mold by the compressed gas and the ejector rod.

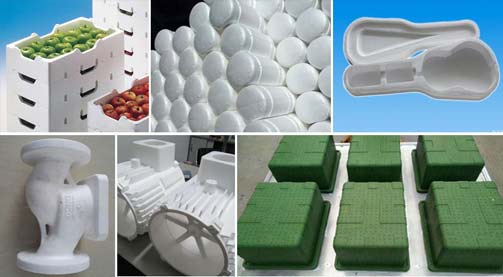

The products are widely used for the packaging of instruments, meters, home appliances, handicrafts, ceramics, glassware and other fragile items. They can also be used as building materials such as the well-known icf blocks.

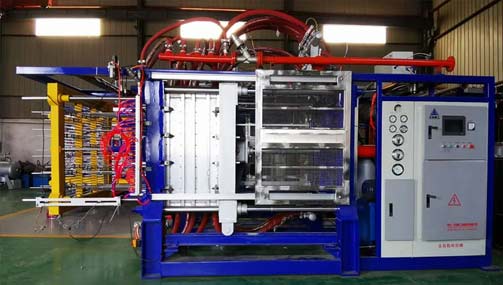

The eps shape molding machine(EPS shape moulding machine) mainframe structure is welded passed aging treatment, the four-column horizontal layout is stable and reliable. The main components of the machine are selected from international famous brand products, which form a superior machine-electric-liquid-pneumatic integrated system, which makes the machine action reliable, low energy consumption, long life and high production efficiency.
| Items | SPZ140B | SPZ160B | SPZ175B | SPZ180B | SPZ200B |
| Mould Size | 1400x1200mm | 1600x1350mm | 1750x1450mm | 1800X1600mm | 2050x1800mm |
| Max Product Size | 1200x1000x330mm | 1400x1100x330mm | 1550x1250x330mm | 1610x1400x330mm | 1850x1600x330mm |
| Rear Window Size | 1300x1080mm | 1450x1150mm | 1600x1250mm | 1680x1440mm | 1920x1640mm |
| Mould Opening Distance | 270-1420mm | 270-1420mm | 270-1420mm | 270-1370mm | 290-1290mm |
| Steam Inlet | DN80 | DN80 | DN80 | DN100 | DN125 |
| Cooling Water Inlet | DN80 | DN80 | DN80 | DN80 | DN80 |
| Compressed Air Inlet | DN65 | DN65 | DN65 | DN65 | DN65 |
| Vacuum pump capacity | 230m³/h | 280m³/h | 280m³/h | 280m³/h | 280m³/h |
| Compressed Air Consumption | 1.8m³/cycle | 2m³/cycle | 2m³/cycle | 2.2m³/cycle | 2.5m³/cycle |
| Cooling Water Consumption | 50-150kg/cycle | 55-180kg/cycle | 60-190kg/cycle | 80-200kg/cycle | 90-210kg/cycle |
| Cycle Time | 60-150 seconds | 100-180 seconds | 100-180 seconds | 120-190 seconds | 130-210 seconds |
| Installed Power | 14.1kW | 16.1kW | 16.1kW | 19.6kW | 19.6kW |
| Dimension(LxWxH) | 5100x2140x2500mm | 5300x2300x2600mm | 5450x2450x2700mm | 5500x2610x2800mm | 5800X2800X2900mm |
| Overall Weight | 5000kg | 5800kg | 6200kg | 6500kg | 7000kg |
Remarks:There are other machine sizes. Please inform your product size and capacity you need , then we can customize the machine accordingly. Principle, workflow, and purchasing guide of EPS shape molding machine | |||||
Why choose our EPS Shape Molding Machine / EPS shape moulding machine?
If you want to beat your competitors in product quality and capacity, you have to use our EPS pre expander machine. The reasons are as the following: ;
1.China manufacturer of eps foam machine since 1980s. ;
The best eps machine including EPS pre expander,EPS block molding machine,EPS shape molding machine,EPS cutting machine etc is made in our factory.
2. Professional EPS Machinery Manufacturer
Our engineers have 40+ years experience in EPS machinery. Our persons are rofessional,enthusiastic and responsible Each device undergoes a rigorous testing procedure
3. 7X24 H Support (info@eps-cn.com)
Customers participate in the test machine.It's our duty to install and debug the products and train the customers for free until they learn how to use it.
4. Easy operation.
Our machines have been tested by many customers and have been improved many times according to many customers’ feedback. The operation of our machine is more and more practical and easier and easier. We are the manufacturer in China that specially makes EPS machine only and we are the leader of Chinese EPS foam machinery industry.
5. Professional service team.
We have engineers and technicians who engaged in the overseas installation and technical training.
