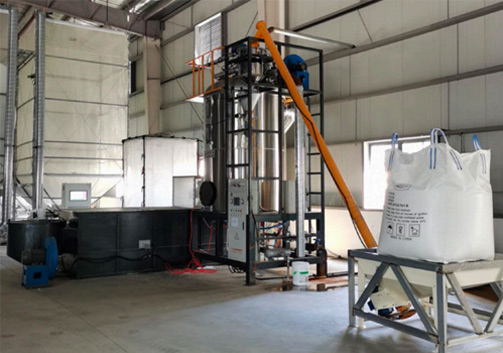

EPS pre expander machine’s function is to make eps raw material into eps beads.
The EPS pre expander machine has a cylinder with a stirring device inside, its structure is similar to the reaction kettle. It is equipped with a feeding device, a discharging device, an electronic control system, an intake pipe system, and an exhaust pipe system. Raw materials are added into the cylinder, and then steam is injected into the foaming machine under the control of an electronic control system for heating. The raw materials expand because of heat. By adjusting the steam pressure and heating time in the foaming machine, we can obtain the foam granules with the density we need. Then the expanded foam particles are discharged into the drying box directly. The foam granules pass through the drying box and are blown into the silos by a fan for storage.
EPS Pre Expander Machine Technical Parameters ：
| Model | Cylinder Diameter | Height Of Cylinder | Installed Power | Total Height | Capacity（Take 18kg/M3 As An Example） |
| 140 | 1400mm | 1900mm | 20.5kW | 4000mm | 800kg/hour |
| 150 | 1500mm | 2000mm | 22.5kW | 4300mm | 1000 |
| 160 | 1600mm | 2300mm | 22,5kW | 4500mm | 1200kg/hour |
| 180 | 1800mm | 2300mm | 26.5kW | 5000mm | 1600kg/hour |
| 200 | 2000mm | 2600mm | 26.5kW | 6500mm | 2200kg/hour |
The working principle, types, and selection criteria of EPS pre-expander machine
Why choose our EPS pre expander machine?
If you want to beat your competitors in product quality and capacity, you have to use our EPS pre expander machine. The reasons are as the following: ;
1.China manufacturer of eps foam machine since 1980s. ;
The best eps machine including EPS pre expander,EPS block molding machine,EPS shape molding machine,EPS cutting machine etc is made in our factory.
2. Professional EPS Machinery Manufacturer
Our engineers have 40+ years experience in EPS machinery. Our persons are rofessional,enthusiastic and responsible Each device undergoes a rigorous testing procedure
3. 7X24 H Support (info@eps-cn.com)
Customers participate in the test machine.It's our duty to install and debug the products and train the customers for free until they learn how to use it.
4. Easy operation.
Our machines have been tested by many customers and have been improved many times according to many customers’ feedback. The operation of our machine is more and more practical and easier and easier. We are the manufacturer in China that specially makes EPS machine only and we are the leader of Chinese EPS foam machinery industry.
5. Professional service team.
We have engineers and technicians who engaged in the overseas installation and technical training.
